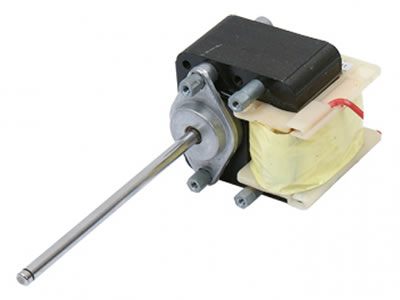

PLD61 53W Shaded Pole AC Motor
Inquiry Form

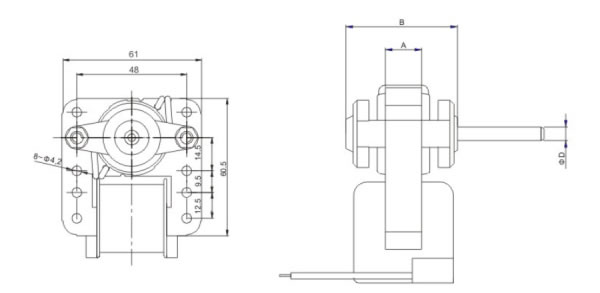

PLD61 53W Shaded Pole AC Motor

Standards: ISO9000, CCC, VDE, UL, TUV

PLD61 series shaded pole AC motor in Lepuda is produced at an annual volume of 1.2 million sets and exported to many countries in South America like Brazil, as well as Turkey, Russia, Italy, Indonesia, Korea, etc. Motors with oil bearings or roller bearings are alternative. During our production process, each part of the motor including the frame, the rotor and the bearings are fully detected to guarantee their quality. PLD 61 series is mainly designed for low-consumption applications like oven, refrigeration, humidifier, air purifier, fan, etc.

Model: PLD61-10 /16/20/25/30/35/40
Stator thickness: 10/16/20/25/30/35/40mm
Direction of rotation: CW/CCW (clockwise/counterclockwise)
Shaft diameter: 5/6mm
Exported to: Turkey, Russia, Italy, Indonesia, Korea, etc
Minimum order: 2000 PCS
Standards: ISO9000, CCC, VDE, UL, TUV

Parameters
Model Voltage (V) Frequency (Hz) Maximum Input Power (W) Maximum Rotating Speed (RPM)
PLD61-10 110 60 20 1000
220 50 20 1000
PLD61-16 110 60 35 1300
220 50 35 1300
PLD61-20 110 60 45 1500
220 50 45 1500
PLD61-25 110 60 53 1500
220 50 53 1500
