30mm AC Cross Flow Fan
Inquiry Form

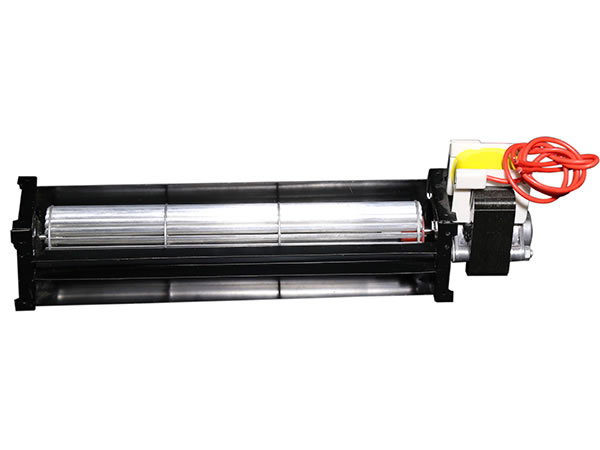

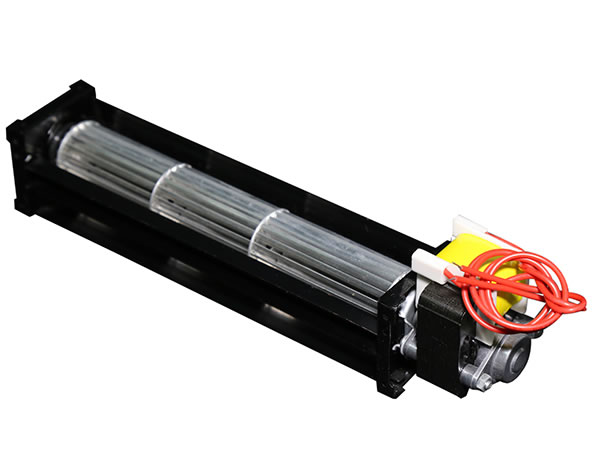

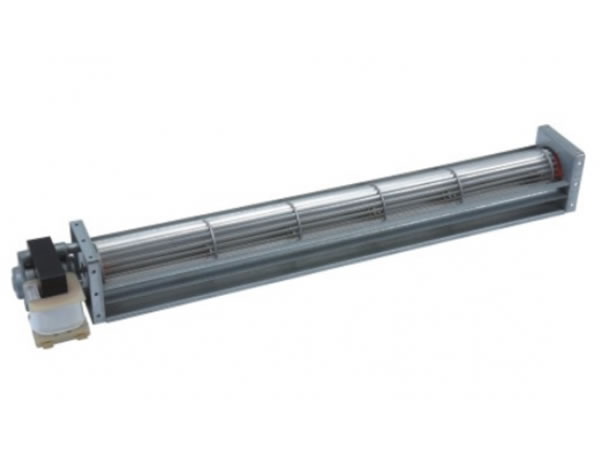

30mm AC Cross Flow Fan

30mm AC cross flow fan is designed with aluminum as the material for wind turbine and galvanized sheet for the wind shell. Both the two materials feature high hardness. AC fans are mainly applied in heating units, electric fireplace, exhaust fans, and other ventilation products. This product has been exported to the United States, Canada, Poland, Germany, etc.

Wind turbine diameter: 30mm
Length of wind turbine: 150mm, 250mm, 300mm, 350mm (customizable)
Insulation level: B, F, G
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO

Parameters
Model Voltage (V) Frequency (Hz) Input Power (W) Discharge (m ³/h) Rotating Speed (RPM) Noise (dB)
PLD4815-GL30150 230 50 10 42 2700 35
PLD4815-GL30200 230 50 11 55 2700 35
PLD4815-GL30250 230 50 10 67 2600 37
PLD4820-GL30300 230 50 13 90 2700 38
PLD4825-GL30350 230 50 15 100 2600 39
