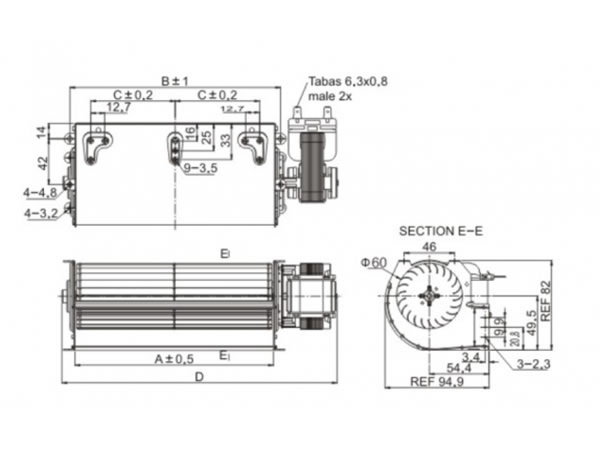

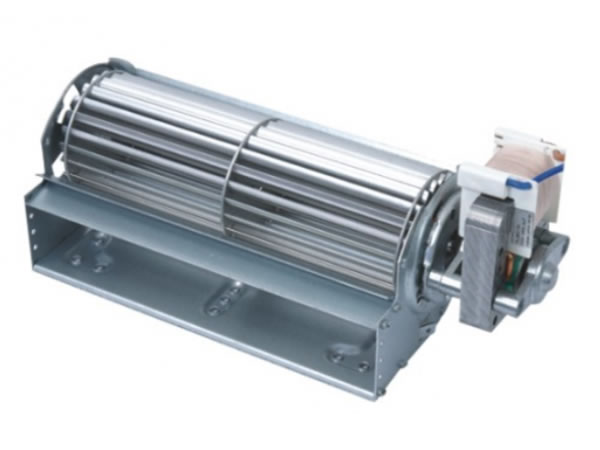

AC 60 Series Cross Flow Fan

Applications: heating units, electric fireplace, oven, exhaust fan, etc
Turbine diameter: 60mm
Turbine length: 180mm, 240mm, 300mm, 360mm (customizable)
Insulation level: B, F, H
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO

AC 60 series cross flow fan can be applied in heating units, electric fireplace, oven, exhaust fan, etc. It has been exported worldwide to the United States, Canada, Poland, Germany, etc.

Inquiry Form
Parameters
Model Voltage (V) Frequency (Hz) Maximum Input Power (W) Maximum Discharge (m ³/h) Rotating Speed (RPM) Noise (dB)
PLD6113.5-GL60180 230 50 17 70 1600 45
PLD6116-GL60180 230 50 23 130 1400 45
PLD6120-gl60240 230 50 33 170 1700 48
PLD6125-GL60300 230 50 28 200 1400 43
PLD6130-GL60360 230 50 45 250 1400 44

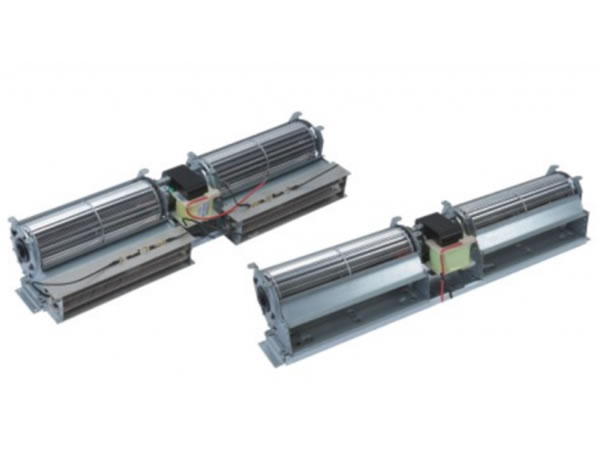

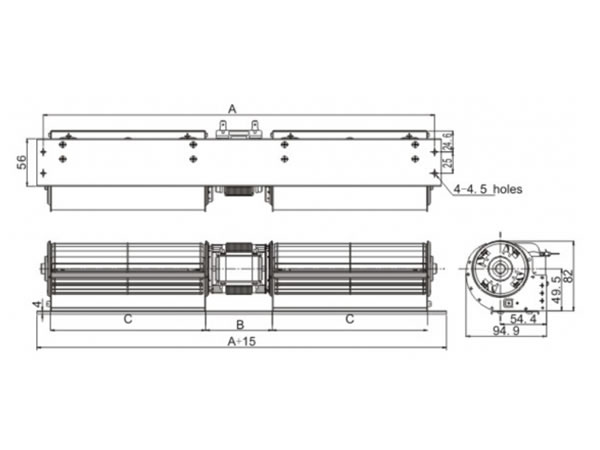

AC 60-2 Series Cross Flow Fan

Application: cooling units, air curtain, ventilation products
Turbine diameter: 60mm，
Turbine length: 180mm, 240mm, 300mm (customizable)
Insulation level: B, F, H
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO

AC 60-2 series cross flow fan is applicable to cooling units, air curtain and ventilation products. It has been sold to the United States, Canada, Poland, Germany, etc.

Inquiry Form
Parameters
Model Voltage (V) Frequency (Hz) Maximum Input Power (W) Maximum Discharge (m ³/h) Rotating Speed (RPM) Noise (dB)
PLD6330-GL60180-2 230 50 28 150 2000 45
110 60 32 185 2500 48
PLD6330-GL60240-2 230 50 33 180 1800 43
110 60 38 200 2000 46
PLD6340-GL60300-2 230 50 40 225 1800 42
110 60 45 250 2000 46
