65mm AC Cross Flow Fan
Inquiry Form

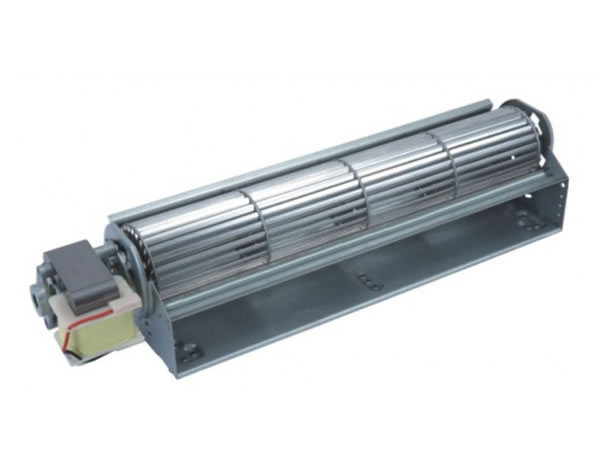

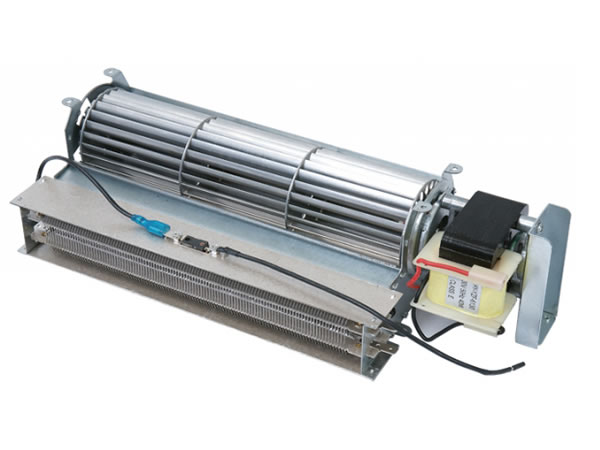

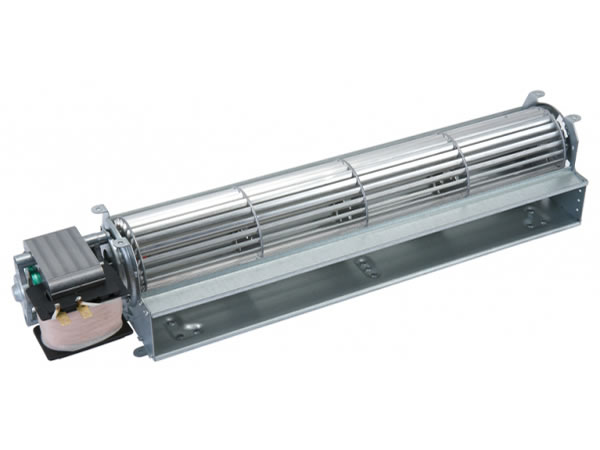

65mm AC Cross Flow Fan

Applications: heating units, cooling systems, electric fireplace, air curtain, etc
Turbine diameter: 65mm,
Turbine length: 180mm, 240mm, 300mm, 360mm
Insulation level: B, F, H
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO

The AC cross flow fan is suitable for use in heating units, cooling systems, electric fireplace, air curtain, etc. It has been exported to the United States, Canada, Poland, Germany, etc.

Parameters
Model Voltage (V) Frequency (Hz) Maximum Input Power (W) Maximum Discharge (m ³/h) Rotating Speed (RPM) Noise (dB)
PLD6120-GL65120 230 50 15 85 1300 42
PLD6125-GL65180 231 50 30 170 1500 46
PLD6130-GL65240 232 50 38 220 1200 42
PLD6135-GL65360 233 50 42 250 1200 42
