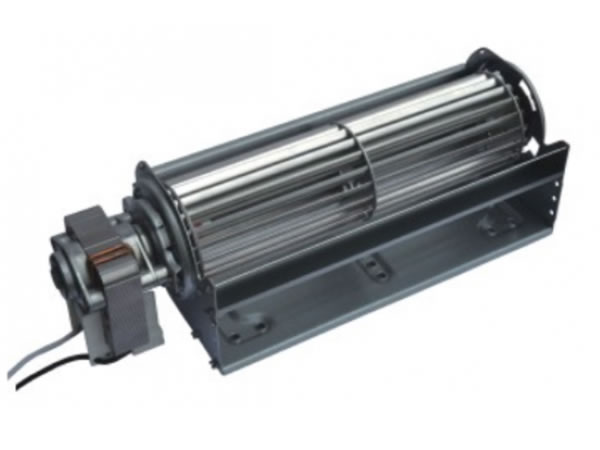

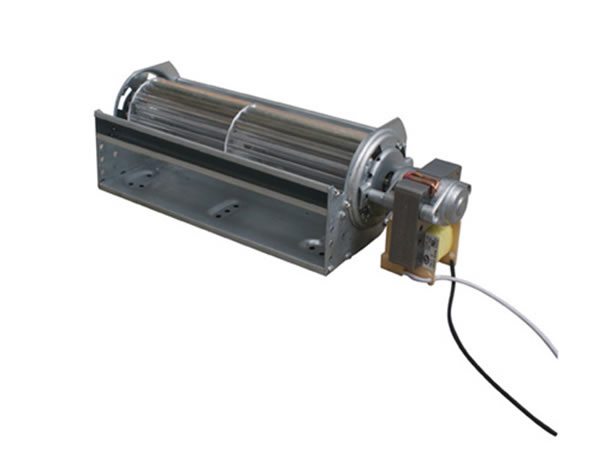

48mm AC Cross Flow Fan

For the 48mm AC cross flow fan, we design the wind turbine with aluminum and the wind shell with galvanized sheet. It finds applications mainly in heating units, electric fireplace, cooling units, ventilation products, among others. This product has been exported to: United States, Canada, Poland, Germany, etc.

Wind turbine diameter: 48mm
Turbine length: 120mm, 180mm, 240mm, 300mm (customizable)
Insulation level: B, F, H
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO

Parameters
Model Voltage (V) Frequency (Hz) Maximum Input Power (W) Maximum Discharge (m ³/h) Rotating Speed (RPM) Noise (dB)
PLD4815-GL48120 110 50 17 80 2100 46
220 60 16 80 2100 16
PLD4815-GL48180 110 50 21 120 1400 40
220 60 25 150 1800 43
PLD4820-GL48240 110 50 23 155 1600 42
220 60 22 155 1600 42
PLD4825-GL48300 110 50 28 190 1800 45
220 60 25 170 1800 43
