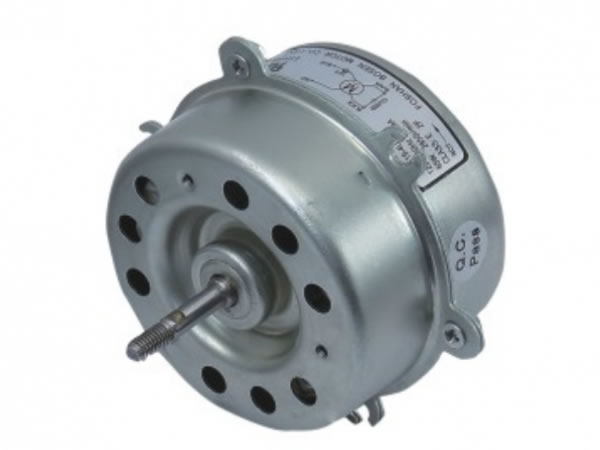

Cooker Hood AC Motor

The AC motor is exclusively used for cooker hoods. Its enameled wire is available with a choice of materials: copper/copper clad aluminum/aluminum. Prominent features include simple structure, low cost, low noise and large air volume.

Features: simple structure, low cost, low noise, large air volume
Enameled wire:copper/ copper clad aluminum/ aluminum
Application: cooker hood

Parameters
Model Voltage (V) Frequency (Hz) Output Power (W) Rotating Speed (RPM) Motor Shaft Poles Insulation Class
YDK10A-58-88 100-240 50 10W-30W 800-1450 uniaxial 2/4/6 A/B/E/F
YDK10B-58-88 100-240 60 10W-30W 800-1450 uniaxial 2/4/6 A/B/E/F
YDK10A-80 100-240 50 10W-30W 800-1450 biaxial 2/4/6 A/B/E/F
YDK10B-80 100-240 60 10W-30W 800-1450 biaxial 2/4/6 A/B/E/F
